3-4 Series

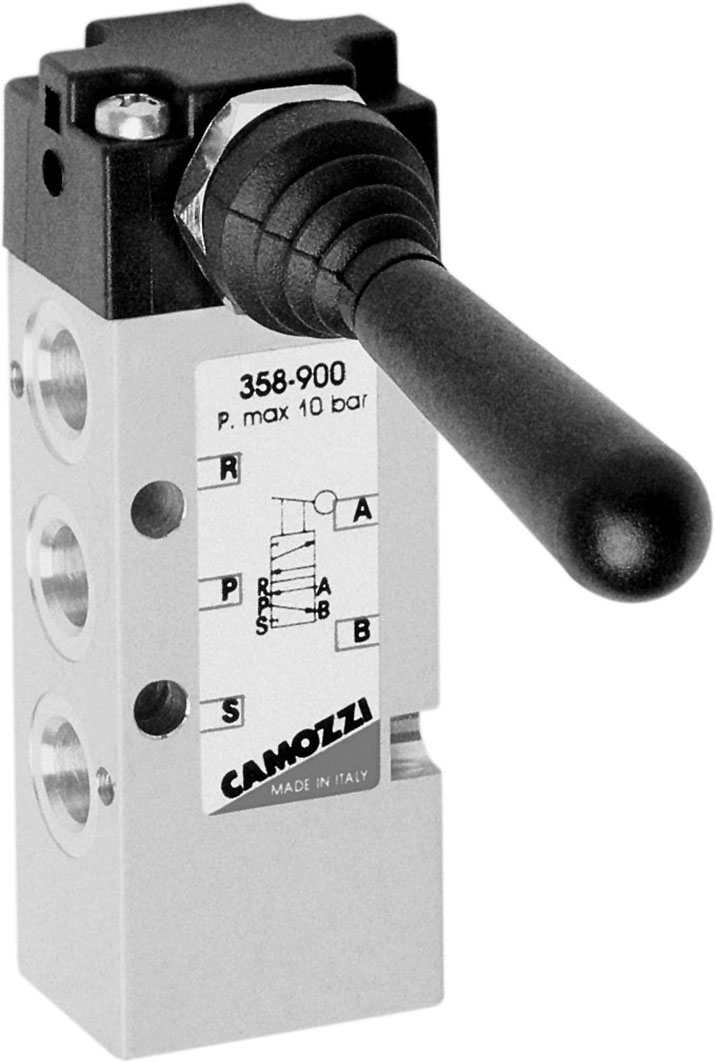

5/2-way lever valve

Technical specifications

Construction Spool-type
QN flow rate See table (measured at 6 bar Δp 1)
Operating pressure -0,9 ÷ 10 bar
Materials Aluminium, body; stainless steel spool; NBR seals
Operating temperature Ambient 0 ÷ 60 °C Fluid 0 ÷ 50 °C
Fluid Filtered air without lubrication*

Code Table

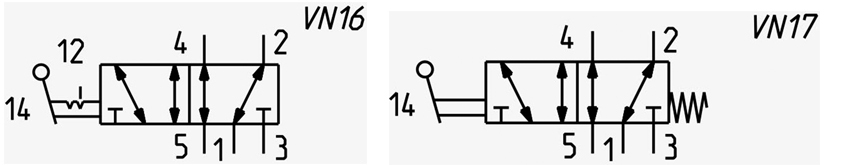

Supplier code Connections Activation force ([N]) Function QN ([Nl/min]) Symbol
label 358-900 1,8" 5 5/2 stabile 700 VN16
label 454-900 1,4" 5 5/2 stabile 1250 VN16
label 358-905 1,8" 22 5/2 monostabile 700 VN17
label 454-905 1,4" 37 5/2 monostabile 1250 VN17
