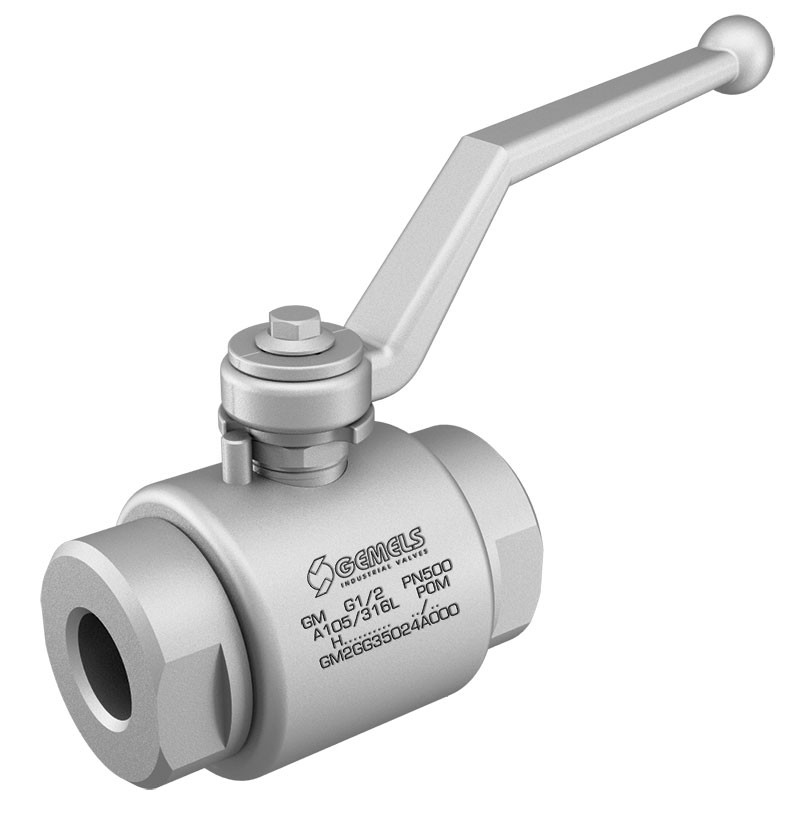

GM/X Series

2-way F-F

Technical specifications

Materials Body, socket and ball in AISI 316 L Stainless steel
Seals POM ball gaskets; body and pivot gaskets NBR
Control element Galvanized steel lever
Thread DIN/ISO 228 BSP

Code Table

Supplier code DN ([mm]) Dimension Model PN ([bar])
label GM/X G 1/4 6 1/4" GM/X 500
label GM/X G 3/8" 10 3/8" GM/X 500
label GM/X G 1/2" 13 1/2" GM/X 500
label GM/X G 3/4" 20 3/4" GM/X 400
label GM/X G 1" 25 1" GM/X 350
label GM/X G 1"1/4 32 1"1/4 GM/X 350
label GM/X G 1"1/2 40 1"1/2 GM/X 350
label GM/X G 2" 50 2" GM/X 350
