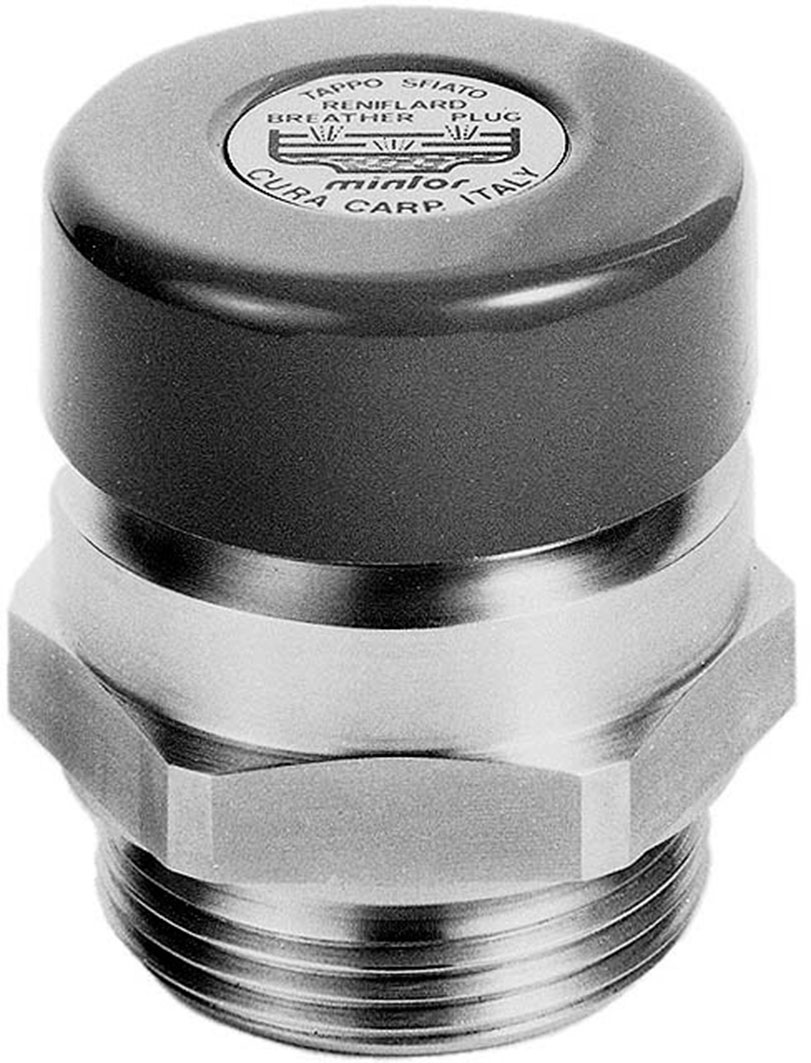

| Construction | Large chamber with labyrinth and orthogonal cut at axis, protected by cover |
| Operation | The pressure created by parts rotating inside the gearbox is released through the labyrinth without splashing of oil even if the plug is mounted on the upper part of the equipment |
| Materials | Aluminium with Galvanized steel cover and Fibre gasket |
| Recommended applications | Gear reducers, gear motors, speed variators and gear boxes |
| Supplier code | Dimension |
|---|---|
| label TSFT/N1M | 14X1,5 |
| label TSFT/N2M | 16X1,5 |
| label TSFT/N3M | 18X1,5 |
| label TSFT/N4M | 20X1,5 |
| label TSFT/N5M | 22X1,5 |
| label TSFT/N6M | 24X2 |
| label TSFT/N7M | 30X2 |
| label TSFT/N8M | 33X2 |
