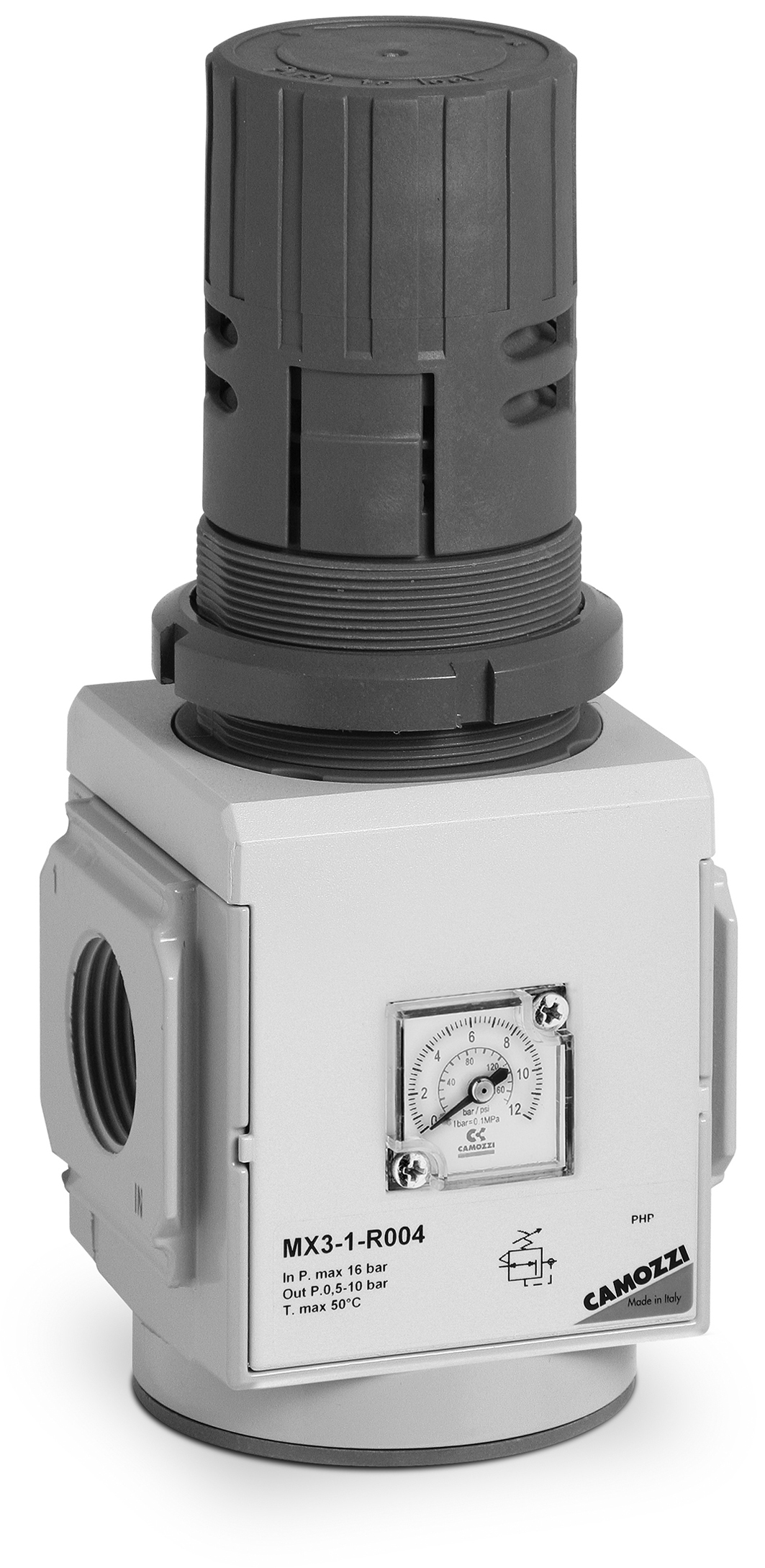

MX Series

Pressure regulators

Code Table

Supplier code Connections Pressure gauge connection Measurement QN (Pa 10 Bar) QN ([Nl/min]) Adjustment range* ([bar]) Symbol
label MX3-1-R400 1" 1/4" 4 bar Δp 0,5 3000 0 ÷ 4 PR02
label MX3-1-R402 1" integrato (0÷6 bar) 4 bar Δp 0,5 3000 0 ÷ 4 PR06
label MX3-1-R004 1" integrato (0÷12 bar) 6 bar Δp 0,5 2000 0,5 ÷ 10 PR06
label MX3-1-R000 1" 1/4" 6 bar Δp 0,5 2000 0,5 ÷ 10 PR02
label MX2-3/4-R402 3/4" integrato (0÷6 bar) 4 bar Δp 0,5 2000 0 ÷ 4 PR06
label MX3-3/4-R400 3/4" 1/4" 4 bar Δp 0,5 2000 0 ÷ 4 PR02
label MX3-3/4-R004 3/4" integrato (0÷12 bar) 6 bar Δp 0,5 1000 0,5 ÷ 10 PR06
label MX3-3/4-R000 3/4" 1/4" 6 bar Δp 0,5 1000 0,5 ÷ 10 PR02
label MX2-1/2-R000 1/2" 1/8" 6 bar Δp 0,5 1000 0,5 ÷ 10 PR02
label MX2-1/2-R004 1/2" integrato (0÷12 bar) 6 bar Δp 0,5 1000 0,5 ÷ 10 PR06
label MX2-1/2-R400 1/2" 1/8" 4 bar Δp 0,5 2000 0 ÷ 4 PR02
label MX2-1/2-R402 1/2" integrato (0÷6 bar) 4 bar Δp 0,5 2000 0 ÷ 4 PR06
