| Construction | Poppet-type (VMS with slider) |
| QN flow rate | See table (measured at 6 bar Δp 1) |
| Operating pressure | 0 ÷ 10 bar (VMS 0 ÷ 8 bar) |
| Materials | AL body; Brass OT58 poppet; NBR seals |
| Operating temperature | Series 1 = Room 0 ÷ 60 °C; fluid 0 ÷ 50 °C VMS = -10 ÷ +80 °C |
| Fluid | Filtered air without lubrication* |
| Supplier code | Connections | Activation force ([N]) | Function | QN ([Nl/min]) | Symbol |
|---|---|---|---|---|---|

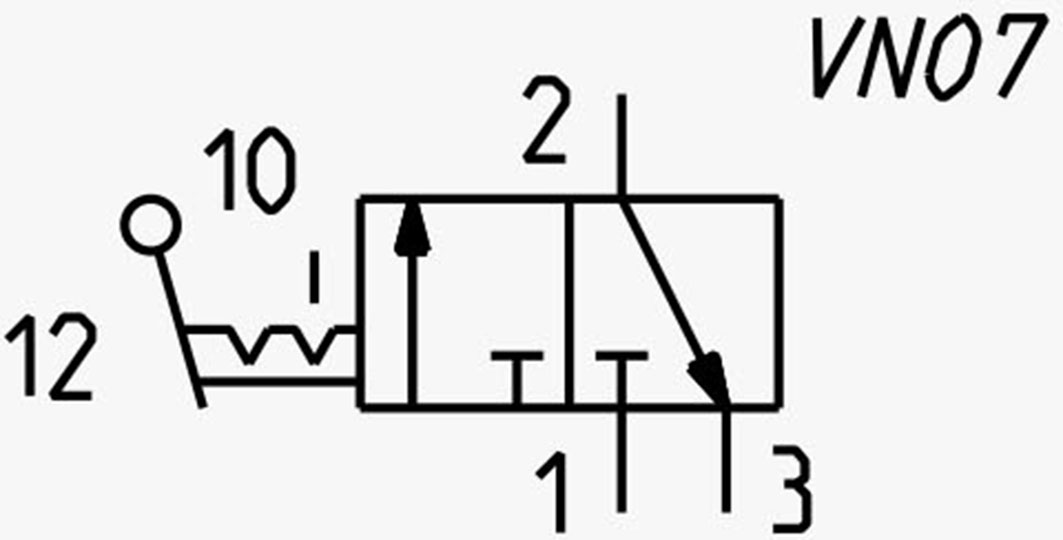

| label 138-900 | 1,8" | 25 | 3/2 stabile | 500 | VN07 |

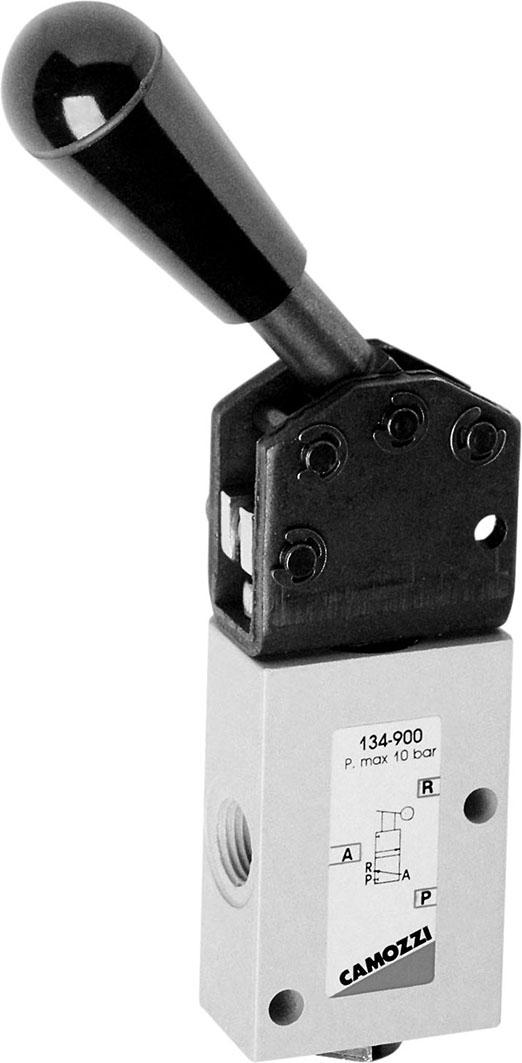

| label 134-900 | 1,4" | 30 | 3/2 stabile | 1250 | VN07 |
